Product composition：
The entire machine uses a servo motor to drive the conveying mechanism, and the double-layer synchronized belt clamping system eliminates the need for intermittent transmission.
The servo-driven cutting function removes the need for manual cutting, improving the speed and efficiency of scissors.
The scissors-type cutting mechanism contains a heating curl function, which is more responsive and stable.
Can paste two ribbons simultaneously.
Product composition：
The machine is composed of a book core delivery mechanism, a synchronous belt clamping mechanism, a split-book delivery mechanism, a ribbon delivery mechanism, a ribbon back-folding mechanism, a ribbon cutter mechanism, a ribbon sticking mechanism, an output mechanism, etc.
Functions & features：
● The second-generation product by Yasi Machinery, the new version features improved performance by upgrading its structure as follows:
● The machine is controlled by a centre computer, which continuously unrolls the ribbon and then pastes it to book cores. The scissors with heating heads synchronize with the cutting ribbon, allowing for a fast and smooth cut. The cutting angle can be adjusted from vertical to diagonal.
● The machine features ribbon back-folding, glue spray sticking, and automatic synchronous sticking functions.
● This machine is designed to work smoothly. No manual intervention required in a complete production cycle including book delivery, page turning, ribbon delivery, back-folding, cutting, etc.
● The machine can be used to paste ribbons for hardcover books, notebooks, account books, etc
● Can be linked with hardcover book machines to save labor costs and increase production efficiency.
● The machine adopts a compact, modular design that is stable and reliable.
● The intelligent control system allows speed settings to be programmed quickly and easily.
Technical Data:
|
Max. operating speed |
70 book blocks per minute |
Power consumption |
4.5kw |
|
Max. book block size
|
285x297mm |
Standard voltage |
380V 220V 50Hz |
|
Min. book block size
|
150x100mm |
Air consumption (external supply) |
0.35 m3 /分钟 |
|
Min. book thickness
|
8mm |
Net weight |
2500kg |
|
Max. book thickness
|
60mm |
Dimensions (length x width x height） |
5800x 3200 x 1900mm |
|
|
4-10mm |
|
|
|
L H S
|
AUSCP SD 70 |
|

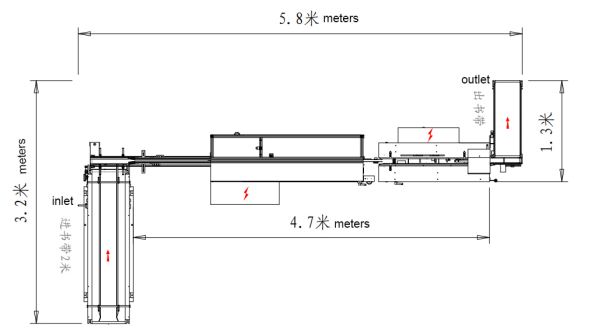

Equipment installation plan：
