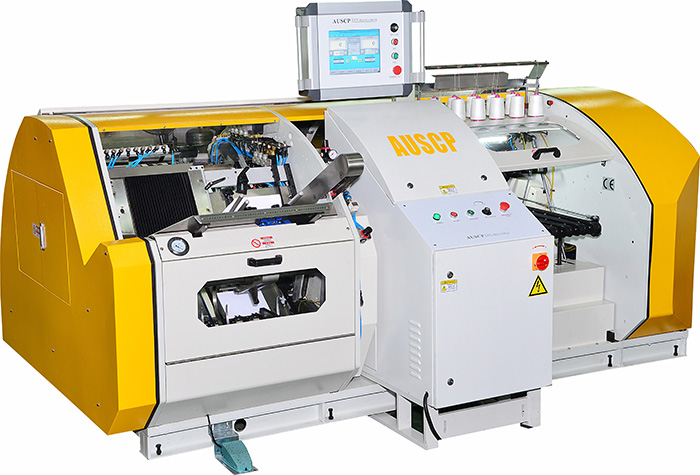

AUSCP SX200/43 Automatic Book Sewing Machine
[View Original Photo]   [BACK]
[Previous Page]  [Next Page]

Product composition:

AUSCP SX200/43 is composed of thread separating mechanism, page flipping mechanism, conveying mechanism, positioning mechanism, stitching mechanism, wire cutting mechanism, book separating mechanism, wire cutting head mechanism, and intelligent control system. The whole machine adopts integrated design, which does not require disassembly during relocation or transportation.

Functions & features:

● High speed and precision: maximum speed of up to 200 signatures per minute, with two fully sealed cam control boxes filled with lubricating oil for smooth and durable operation. The flywheel accurately drives paper feeding, conveying, and saddle stitching. The book signature on the saddle is precisely positioned through synchronized belt structure with puller.
● Intelligent debugging: Colored touchscreen monitors the entire production including paper feeding, conveying, lockstitching, and receiving, ensuring the quality of lockstitching.
● Fault detection & identifying: When faults such as missing signatures, multi-signatures, jams, dropped signatures, shortened signatures, and broken signatures occur, the machine will alarm and pause, while displaying the fault.
● Automatic mis-signature detection function (optional).
● Memory storage: can store 20 different book sewing programs and recall them as needed.
● Automatic plate adjustment: by setting the size of the signature on the touch screen and confirming the page turning method, the transmission system automatically positions the conveyor belt, opens the page turner, adjusts the position of the fixed saddle drive chain and acceleration wheel, and adjusts the height of the finished book platform. Simple and easy to learn, fast operation, and quick plate switching, which improves production efficiency.
● Signature separation: the blower and mechanical arm separate the bottom signature from the pile, and the suction cup extracts the separated signature from the feeder. The tilting device helps eliminate scratches on the surface of the signature.
● Automatic page-turning: the page-turner is equipped with four programmable vacuum suction devices, both the upper and lower sides, which can perform 4+4 vacuum page turning, and can handle signatures with even or uneven tops and bottoms. It can automatically flip through sets of pages, loose pages, pages without long or short edges, and unevenly thick signature It can also turn pages of signatures with edges over 8mm long or short.
● Signature conveying: the signature is placed on the conveying saddle after being turned and is pushed by the conveyor chain hook. The acceleration wheel sends the signature into the active lockstitch saddle, and the speed of the acceleration wheel automatically adjusts according to the speed of the machine.
● Automatic signature separation and thread cutting: the automatic signature separation and thread cutting device (cuts the excess thread to about 8-10mm for easy binding) can separate the book signatures one by one according to the setting, regardless of the number of signatures in the book
● Flat lock: uses fine ultra-short needles (¢16mm) with a narrow stich spacing (19mm) to make the product flatter and less prone to glue leakage, ensuring high-quality book sewing. The lockstitch device consists of cam box type equipment, which not only reduces noise but also extends the life of the cam.
● Lubrication on demand: equipped with centralized oil supply lubrication system, oil pressure alarm and oil storage device. When the machine is in operation, lubricant is precisely supplied through pipe to wherever necessary in the timely manner.

Technical Data:


Max. operating speed



200 signatures/min

Min signature sewed

signatures


Max. signature size (H x L)


430x320mm

Page Turner Qty.

4 top + 4 bottoms


Min. signature size (H x L)


120x75mm

Power consumption

5kw


Max. number of stitch positions


10 groups

Standard voltage

380V/220V, 50 Hz, 3 phases


Stitch lenght


19 mm

Air consumption (external supply)

max. 1.0m3/min at  8bar


Thread hook diameter



¢1.6 mm

Net  weight

4500Kg


Single signature thickness


0.5~1.5mm

Dimensions (length x width x height)

20900×3280×1850mm




L         H          S


Max. size     320     430     1.5


Min. size      75      120     0.5mm


AUSCP sx200/43

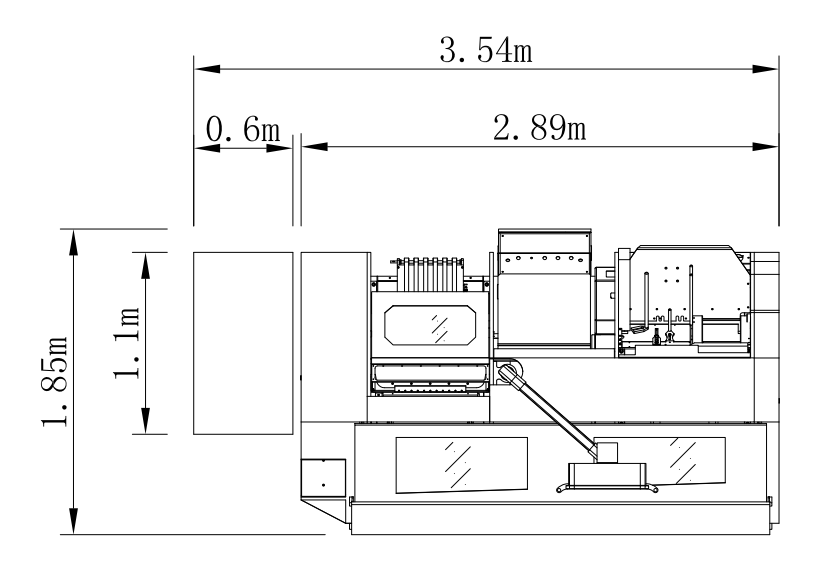

 Equipment installation plan:

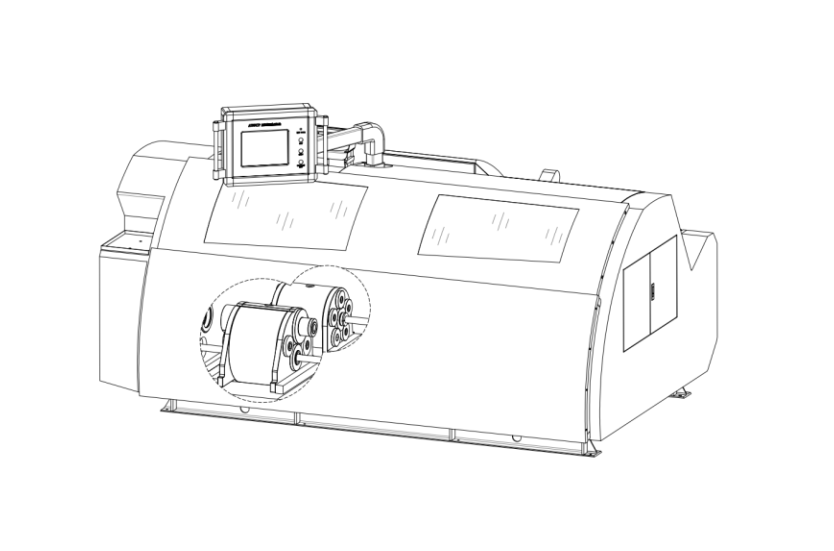

Form factor:
