Equipment installation plan ：

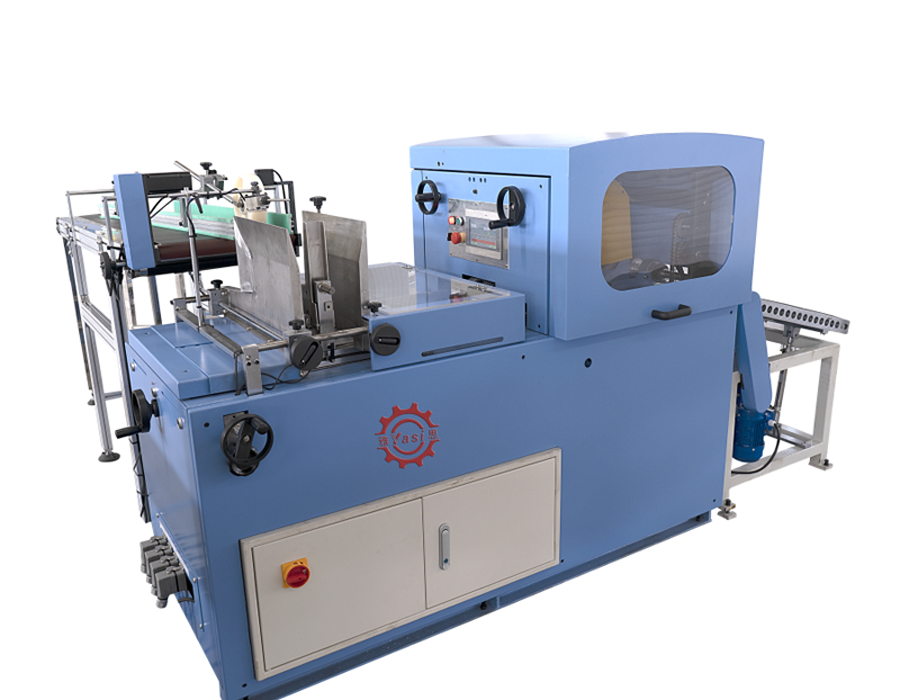

FB-460 splitting saw, for splitting two-up book blocks of perfect bound or thread sewn books and brochures. To be used in book production ines in front of a three knife trimmer. Equipped with infeed belt from right side or left side.
Product components：
● Infeed System: Comprising a conveyor belt and acceleration wheels, this system reliably and accurately transports the glued books into the machine's storage hopper.
● Conveyance System: Books in the storage hopper are moved with a chain pusher and a synchronized belt, precisely delivering them to the circular saw cutting assembly.
● Splitting Assembly: Powered by a variable frequency drive motor and equipped with a circular saw, this assembly splits the twin books into individual units. It also features an optional side saw for more specialized cuts；
● Outfeed System: After splitting, the books are moved along a conveyor belt to the next stage of production.
Functions & features：
User-friendly Storage Hopper: This feature is reliable and easy to adjust. It can also be reoriented based on the layout of the customer's site.
Versatility: The machine accommodates both fully bound books and semi-finished books with glued spines for twin-book splitting.
High-Powered Motor: Equipped with a high-speed, high-powered motor, the machine offers fast splitting speeds, minimal cutting errors, and optimal safety features.
Efficient Debris Collection: The machine uses an upper and lower debris suction method for effective waste collection. This allows for easy separation and recycling of paper edges and debris.
Technical Specifications:
Mechanical Speed: 1000-6000 books per hour Total Power: Approximately 14.75 kW
Single Blade Cutting Size：
L L1/L2 W T M 最大尺寸max 460mm 230mm 285mm 60mm 3mm 最小尺寸min 285mm 140mm 95mm 5mm 2mm
