Product composition：
The AUSCP BB50 is used for book spine warpping for the softcover notebooks, exercise books, receipt book, notepad, bill book, sewing book and banknote, etc. It consists of automatic feeder, glueing structure, warpping structure, tape gluing system, book separation mechanism, and automatic control system.
Product & compositiom：
● The AUSCP BB50 is used for spine warping of softcover notebooks, exercise books, receipt books, notepads, bill books, sewing books and banknotes. It is composed of automatic feeder, gluing structure, warping structure, tape gluing system, book sorting mechanism and automatic control system.
● A self-developed product with stable performance and high production efficiency.
Technical Data:
|
Max. operating speed
|
12meters per minute |
Power consumption |
2.2kw |
|
Max. book size
|
480×297 mm |
Standard voltage |
380V/ 220V 50Hz |
|
Min. book size
|
150×90mm |
Air consumption (external supply) |
0.35 m3 /分钟 0.35 m3 /min 8 bar |
|
Book thickness
|
6-60 mm |
Net weight |
1500Kg |
|
Banding paper width
|
100-150 mm |
Dimensions (length x width x height) |
3000×1000×1280mm |
|
L H S
Max. size 297 480 60mm
Min. size 90 150 4mm |
AUSCP BB50 |
|

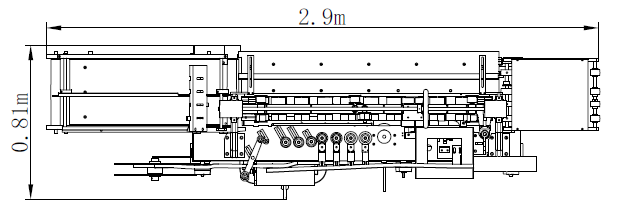

Equipment installation plan：
